Active Directory Prep

Before we start

There is little difference in the Active Directory setup between Window Server 2003 & R2, 2008 & R2, and 2012 & R2. Have not tested Server 2016 yet, but I assume it will be similar as well.
We used a virtualized setup in order to create this walkthrough, using generic domain & computer names where possible.
We used the private IP address range of 10.10.10.x - obviously you'll want to replace our internal IP addresses with your own
- We used a single Active Directory domain controller, to keep things simple. We then configured the following network settings, which is reflected throughout this document:
  - Gateway: 10.10.10.1
  - DNS: 10.10.10.3
  - NTP: 10.10.10.3
  - DC (Domain Controller): 10.10.10.3
  - FreeNAS: 10.10.10.4

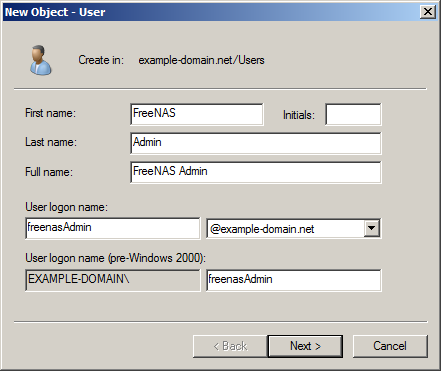

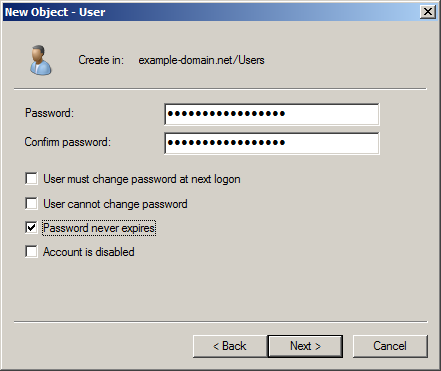

Create a FreeNAS user specifically for joining the FreeNAS server to the domain, named freenasAdmin

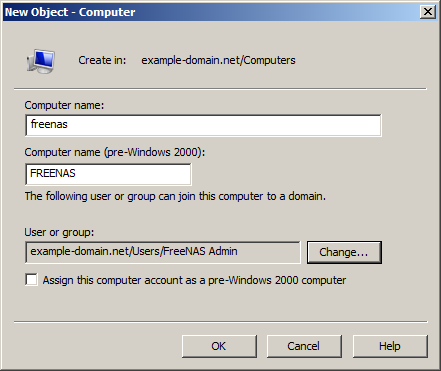

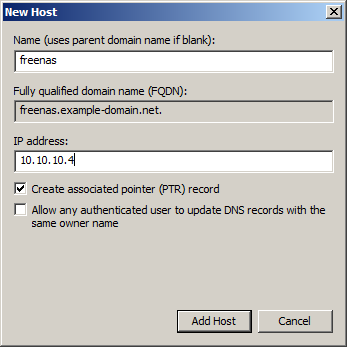

Create a computer account in preparation for joining the FreeNAS server to the domain. The name should match the "A" record you created earlier.
- Before clicking OK to finalize the computer account creation, click "Change" and assign the previously created user "freenasAdmin" the ability to join the server to the domain
  - NOTE: Normal users in Active Directory CAN join computers to a domain, but there's a predefined limit of to how many times (it's 10) this can happen - this may not apply to Server 2008 and above, needs verification

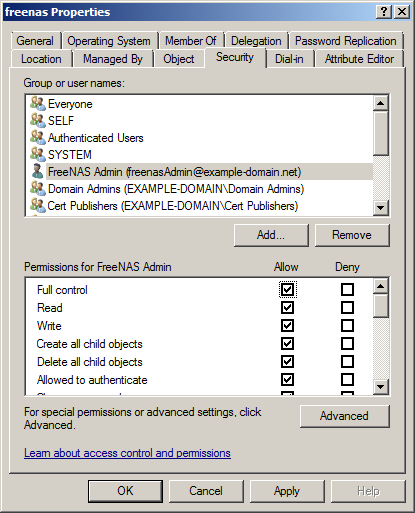

Afterwards, right click on the "freenas" computer object, and select Properties, then click on the Security tab, and give the freenasAdmin user "Full Control" and click OK.
- NOTE: If you don't see the security tab, you need to switch your view to "Advanced Features" - you can see where HERE.

Verify the accuracy of your server's clock - since every computer joined in the domain will be using the DC as a time server as well, it needs to be accurate.

From a CMD prompt, type w32tm /query /configuration - if NtpServer shows time.windows.com - you should really think about changing it.
- To change the time server to both use a more accurate clock, and redundant clocks, type the following:
  - w32tm /config /syncfromflags:manual /manualpeerlist:"0.us.pool.ntp.org,0x1 1.us.pool.ntp.org,0x1 2.us.pool.ntp.org,0x1" /update /reliable:yes
  - If you got any result other then "The command completed successfully", verify your command line. View an example successful result HERE.
  - Restart the Windows time service by issuing the following command net stop w32time && net start w32time. View an example successful restart HERE.
